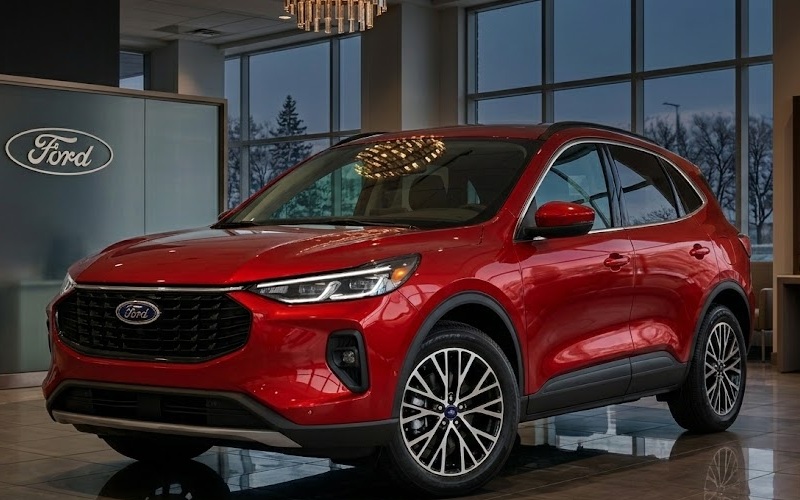

In the rapidly evolving world of automotive technology, hybrid vehicles have become a cornerstone of eco-friendly transportation. At the heart of many of these vehicles lies an innovative engine design that’s changing the game: the Atkinson cycle engine. Ford’s 2.5L IVCT Atkinson Cycle I-4 Hybrid, featured in the Ford Escape PHEV (Plug-in Hybrid Electric Vehicle), represents a pinnacle of this technology.

The Basics: What is an Atkinson Cycle Engine?

The Atkinson cycle engine, named for inventor James Atkinson, improves thermal efficiency by sacrificing some power density. Unlike a conventional Otto cycle engine, which powers most gasoline vehicles, the Atkinson cycle uses a unique valve timing that allows the intake valve to remain open longer than usual.

This extended valve timing creates a shorter compression stroke than the expansion stroke, leading to a higher expansion ratio. The result is that more energy is extracted from the fuel during the power stroke, improving overall efficiency.

In a traditional engine, the compression ratio and expansion ratio are identical. However, the expansion ratio is greater than the compression ratio in an Atkinson cycle engine. This difference is key to understanding why Atkinson cycle engines are more efficient but typically produce less power than their Otto cycle counterparts of the same displacement.

The trade-off between efficiency and power makes Atkinson cycle engines particularly well-suited for Escape hybrid vehicles. The electric motor can compensate for the reduced power output, while the increased efficiency of the gasoline engine helps to maximize fuel economy.

The Evolution of Ford’s Hybrid Technology: From Conventional to Atkinson Cycle

Ford’s journey with hybrid technology began in the early 2000s with the introduction of the Ford Escape Hybrid, the world’s first hybrid SUV. This early Escape hybrid system used a conventional Otto cycle engine with an electric motor. While innovative for its time, it didn’t achieve the level of efficiency that Ford engineers knew was possible.

As hybrid technology matured and fuel efficiency standards became more stringent, Ford recognized the need for a more advanced engine design. This led to the development and implementation of the Atkinson cycle engine in their hybrid lineup.

The transition to the Atkinson cycle wasn’t immediate. Ford engineers spent years refining the design, optimizing valve timing, and integrating the engine with increasingly sophisticated hybrid systems. The result of this evolution is the 2.5L IVCT (Intake Variable Cam Timing) Atkinson Cycle I-4 Hybrid engine.

This engine represents a significant leap forward in Ford’s hybrid technology. The IVCT system allows for precise control over the intake valve timing, enabling the engine to switch between Atkinson cycle operation for efficiency and Otto cycle operation for power when needed. This flexibility allows the engine to provide optimal performance across a wide range of driving conditions.

The 2.5L IVCT: Key Components and Their Functions

The 2.5L IVCT Atkinson Cycle I-4 Hybrid is a marvel of modern engineering, with several key components working in harmony to deliver exceptional efficiency and performance:

• Cylinder Block and Pistons: The engine features a lightweight aluminum block with four in-line cylinders. The pistons are designed to withstand the unique stresses of Atkinson cycle operation.
• Intake Variable Cam Timing (IVCT) System: This system allows precise control of the intake valve timing. By adjusting the timing of the intake valves, the engine can switch between Atkinson cycle operation for efficiency and Otto cycle operation for power as needed.
• Direct and Port Fuel Injection: The engine employs both direct and port fuel injection. This dual system allows optimal fuel delivery across all operating conditions, improving efficiency and power output.
• High Compression Ratio: The engine operates at a high compression ratio of 13.0:1, contributing to its impressive thermal efficiency.
• Cooled Exhaust Gas Recirculation (EGR): This system helps reduce emissions and improve fuel efficiency by recirculating a portion of the exhaust gases back into the combustion chamber.
• Electric Water Pump: Unlike traditional engines that use a belt-driven water pump, this engine uses an electric water pump. This allows for more precise control of engine temperature and reduces parasitic losses.
• Integrated Electric Motor: While not part of the engine, the integrated electric motor is crucial to the overall Escape hybrid system. It provides additional power when needed and allows all-electric operation at low speeds.

These components work together to create an engine that’s highly efficient and capable of delivering the performance that Ford Escape PHEV drivers expect.

The Science of Efficiency: How the Atkinson Cycle Improves Fuel Economy

The Atkinson cycle’s efficiency gains come from its unique approach to the four strokes of internal combustion: intake, compression, power, and exhaust.

In a conventional Otto cycle engine, the intake valve closes at the bottom of the intake stroke, and the piston then compresses the entire cylinder volume. In the Atkinson cycle, the intake valve remains open for a portion of the compression stroke. This pushes some of the air-fuel mixture back into the intake manifold, effectively reducing the compression ratio.

However, the expansion ratio remains the same as that of a conventional engine. This means more energy is extracted from the fuel during the power stroke than used during compression. The result is more efficient fuel use, translating to better fuel economy.

The IVCT system further enhances efficiency in the Ford 2.5L IVCT Atkinson Cycle I-4 Hybrid. The engine can optimize operation for different driving conditions by precisely controlling the intake valve timing. At low loads, it can operate in full Atkinson cycle mode for maximum efficiency. When more power is needed, it can shift towards Otto cycle operation, closing the intake valves earlier to increase the effective compression ratio and produce more power.

The high compression ratio of 13.0:1 also contributes to the engine’s efficiency. Higher compression ratios generally lead to better thermal efficiency, as more energy is extracted from the fuel. However, high compression ratios can also lead to knocking in conventional engines. The Atkinson cycle’s lower effective compression ratio helps mitigate this issue, allowing for a high compression ratio’s benefits without drawbacks.

Power and Performance: Balancing Efficiency with Driving Dynamics

While the Atkinson cycle is renowned for its efficiency, it traditionally comes with a trade-off in power output. However, Ford’s engineers have worked diligently to ensure that the 2.5L IVCT Atkinson Cycle I-4 Hybrid delivers both efficiency and performance.

The engine produces 165 horsepower (123 kW) and 155 lb-ft (210 Nm) of torque. While these numbers might seem modest compared to conventional engines of similar displacement, it’s important to remember that this is only part of the equation in a hybrid system.

The electric motor in the Ford Escape PHEV adds an additional 97 horsepower (72 kW), bringing the total system output to 221 horsepower (165 kW). This combination provides ample power for everyday driving, with the electric motor providing instant torque for quick acceleration from a stop.

The IVCT system plays a crucial role in balancing efficiency and performance. The engine operates in Atkinson cycle mode during normal driving conditions for maximum efficiency. The IVCT system adjusts the valve timing to shift towards Otto cycle operation when additional power is needed, such as during hard acceleration or climbing steep grades, delivering more power at the cost of some efficiency.

This dynamic operation allows the Ford Escape PHEV to deliver impressive fuel economy without sacrificing the driving dynamics that consumers expect. The EPA rates the Escape PHEV at 5.5 L/100km combined, with an all-electric range of 60 km.

Future Prospects: The Role of Atkinson Cycle Engines in Hybrid Vehicle Development

As the automotive industry continues its shift towards electrification, the role of internal combustion engines is evolving. However, hybrid vehicles are likely to play a crucial role in this transition for many years to come, and Atkinson cycle engines like Ford’s 2.5L IVCT will be at the forefront of this technology.

The future development of Atkinson cycle engines is likely to focus on several key areas:

1. Further Efficiency Improvements: Engineers will continue to refine the Atkinson cycle, seeking ways to extract even more energy from each drop of fuel.
2. Enhanced Integration with Electric Systems: As battery and electric motor technology improves, we can expect to see even tighter integration between the Atkinson cycle engine and the electric components of hybrid powertrains.
3. Expansion to Other Vehicle Classes: Currently most common in passenger cars and small SUVs, Atkinson cycle technology could be adapted for larger vehicles, including trucks and commercial vehicles.
4. Adaptation for Alternative Fuels: As the push for lower carbon emissions continues, Atkinson cycle engines could be adapted to run on alternative fuels such as hydrogen or synthetic fuels.
5. Incorporation of Advanced Materials: Advanced materials could further reduce engine weight and improve heat management, leading to even greater efficiency gains.

Find Your Ford Escape Hybrid

The 2.5L IVCT Atkinson Cycle I-4 Hybrid in the Ford Escape PHEV represents the current state of the art in hybrid engine technology. It showcases how innovative engineering can balance the competing demands of efficiency, performance, and environmental responsibility. As we move towards a more sustainable automotive future, engines like this will play a crucial role in bridging the gap between traditional internal combustion vehicles and the all-electric future that many envision.

By continuing to refine and improve this technology, Ford and other automakers are meeting today’s efficiency standards and paving the way for hybrid and plug-in hybrid vehicles, which will be a key part of our transportation landscape for years to come.
